Finnigan DSQ -- Diagnostic, Troubleshoot and Services Parts


  • All items had refurbished and system level tested, meeting or surpassing functional specification and come with 30 days money back Warranty.

  • Exchange is trading defective part for fully refurbished replacement part and will provide Pre-paid shipping slip and please return defective unit back to us.

  • Please chose top manual to look for particular system.

  • If can not find the parts you are looking for please Email us as admin@mdxinc.com or call Toll Free: 866-872-7810 Direct 714-837-7080

  • For Inquire Email us as admin@mdxinc.com or call Toll Free: 866-872-7810 Direct/Text 714-837-7080

  • Get Quick Quote Quick Quote (email)

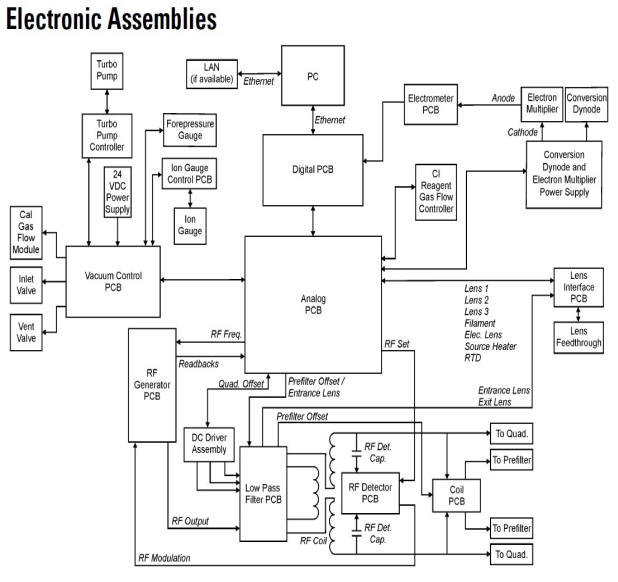

Thermo DSQ Block Diagram








MDX-119650-0414 OEM P/N:   119650-0414 MDX-119650-0416 OEM P/N: 119650-0416



Picture Not Available Description: Ion Source, Lens 1 Picture Not Available Description: Ion Source, Lens 2
Condition: Refurbished Condition: Refurbished
  System Level Tested   System Level Tested
Exchange Price: Quick Quote (email) Exchange Price: Quick Quote (email)





MDX-119650-0423 OEM P/N:   119650-0423 MDX-1203200030 OEM P/N: 1203200030



Picture Not Available Description: Ion Source, Lens 3 Picture Not Available Description: Filament Assembly
Condition: Refurbished Condition: New
  System Level Tested   System Level Tested
Exchange Price: Quick Quote (email) Exchange Price: Quick Quote (email)



Electronic Board and Schematics....Quick Quote (email)


  • Electronic Board Schematics also available to purchasing or we can try repair the board for you. Please provide the board exact part number and revision, please contact us admin@mdxinc.com for more information.

  • 120330-4001 A, Power Module Diagram

  • 119301-4001 B, DPC

  • 119323-4001 A, DIP

  • 119590-4010 H, Digital Processor

  • 119590-4022 B, Analog PCB

  • 119590-4025 A, Analog PCB

  • 119590-4030 D, Vacuum Control Board

  • 119590-4031 A, Schematic, Vacuum Control Board

  • 119590-4040 B, Diffusion Pump Control

  • 119590-4050 B, 150 V Regulator PCB

  • 119590-4060 J, RF Generator

  • 119590-4070 A, RF Detector

  • 119590-4080 A, LPF Low Pass Filter

  • 119590-4090 A, Waveform Output Conditioning

  • 119590-4101 A, Petite Electrometer

  • 119590-4110 B, Lens Interface

  • 119590-4120 D, Ion Gauge Controller

  • 119590-4230 C, DSQ PCB Coil

  • 119590-4270 C, Dual Detector

  • 119590-4412 C, Rod Driver HV Supply

  • 119590-4420 B, Quadrupole Rod Driver

  • 119590-4480 B, DSQ Quadrupole Filter

  • 119590-4500 A, PCB Extended Range Electrometer
